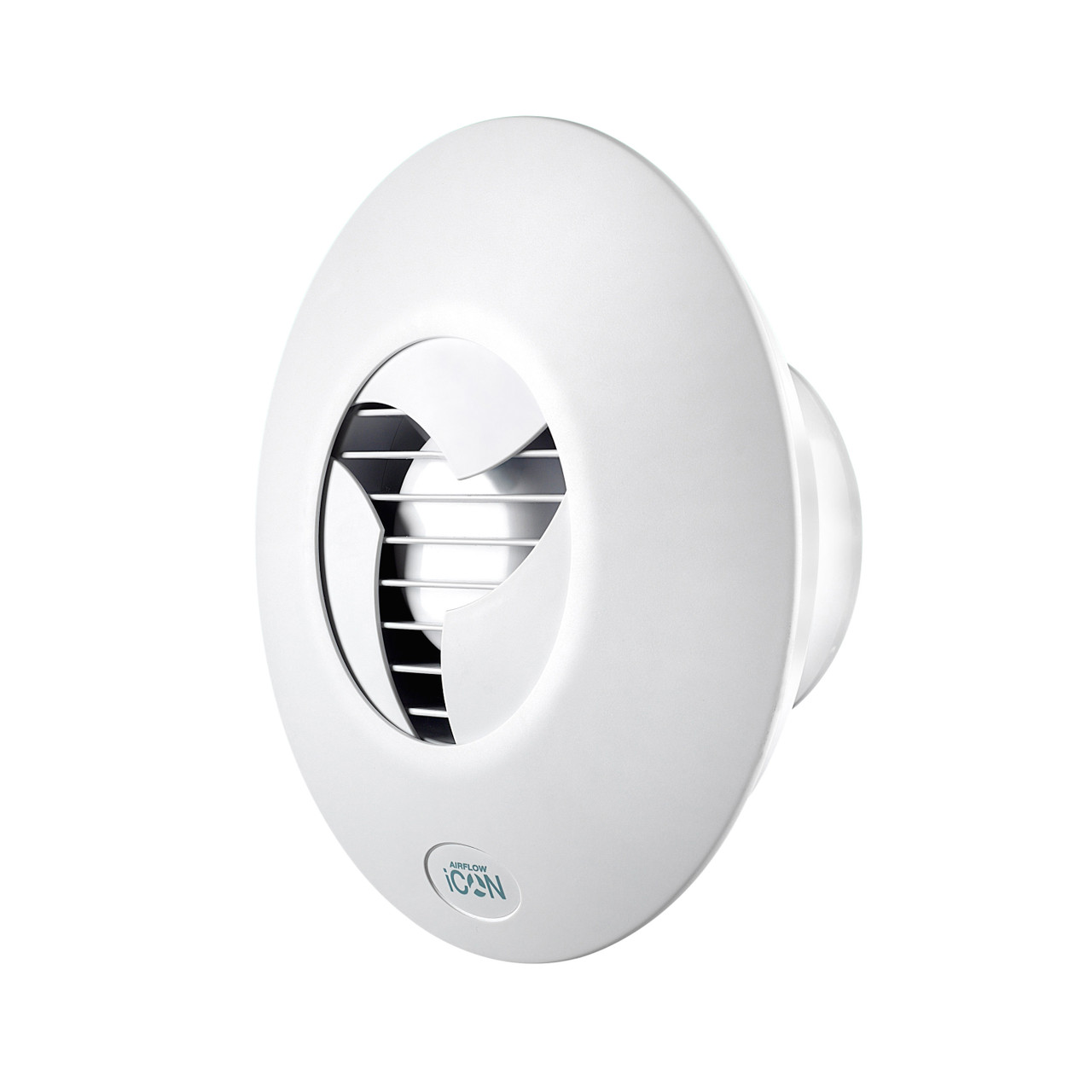

Sycamore Airflow iCON 30 Extractor Fan – White

Product Description

iCON 30 is ideal for toilets, en-suites, shower rooms, utility rooms and bathrooms.

Recessed into the wall or ceiling, it is stylish and unobtrusive, even in the smallest space. The quiet axial fan has been designed with simplicity in mind. A quick, core drilled hole enables immediate fixing of iCON 30. The twist on/off cover requires only a single side entry fixing screw. Cantilever fixing lugs enable recessed installation on uneven surfaces. Tiling is a breeze with the design of the iCON reducing the need to ‘make good’.

The unique iris shutter operates silently, prevents back draughts and helps reduce noise ingress. The optional ‘snap-in’ control module is quick to fit and wire. The control modules are interchangeable allowing you to tailor the fan to meet your needs.

Please Note: The fan provides basic on/off functionality as standard. To enhance your fan’s performance, select an optional control module—available in Pullcord, Timer, Humidity, or Motion Sensing variants. Be sure to include your chosen module when ordering. All 230V control modules are compatible with any iCON 230V fan.

The iCON 30 has a white cover, other colours are available to purchase separately.

Specification

Flow rate up to 33 l/s
Ductable for short runs. Silent shutter
Stylish design
Low energy, quiet in use
Complies with latest Building Regulations (F1 ventilation)
Surface or recessed mounting
Upgrade your cover colour to match décor
Rated Voltage (V) – 230/1ph/50hZ
Wattage – 26.4
Mounting – Surface or Recessed
Diameter – 225mm
Depth – 101mm
Housing Finish – White
