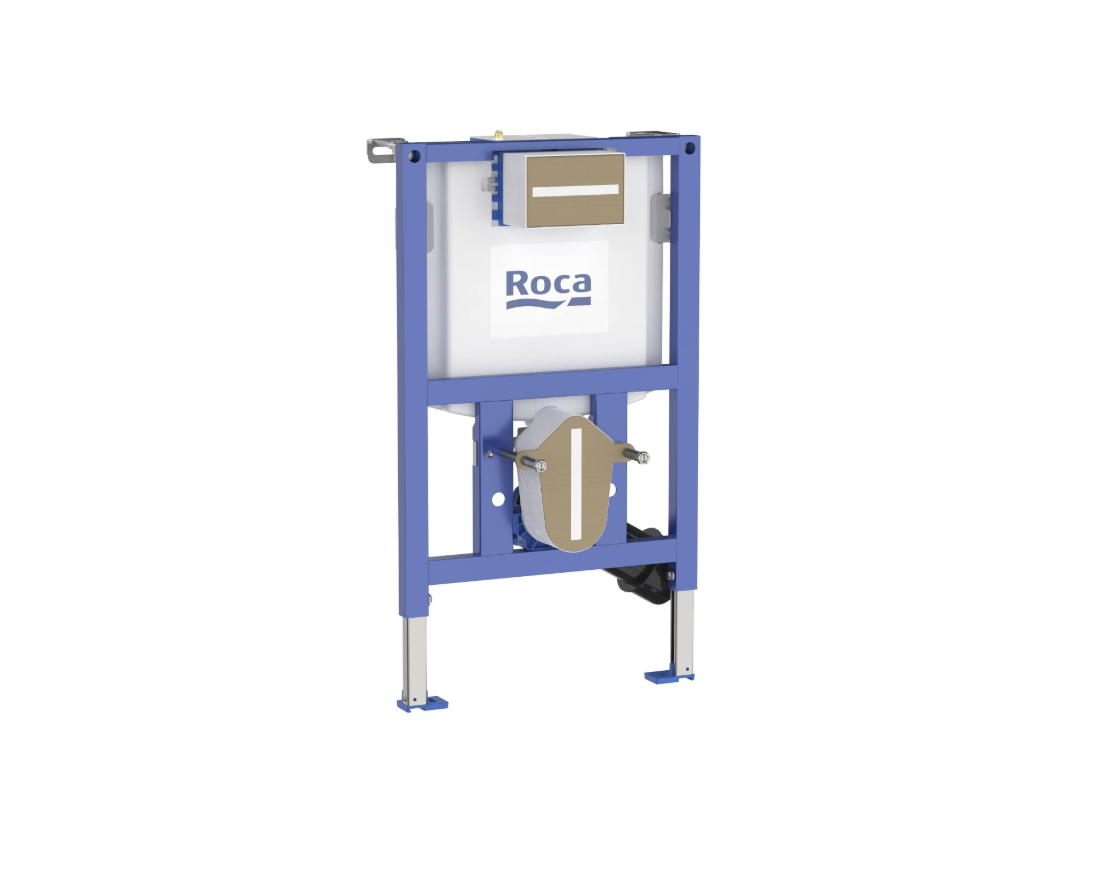

Roca Duplo S Low Height (under window) Installation System with Cistern and Frame (AG)

Product Description

Roca Duplo S Low Height (under window) Installation System with Cistern and Frame (AG)

Specification

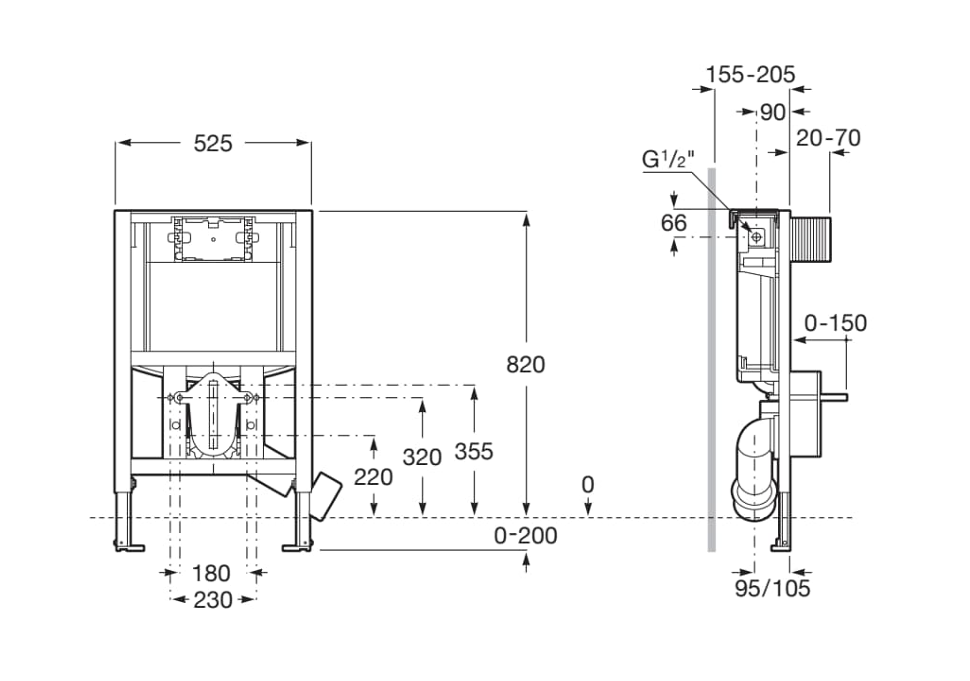

W525 x D155 x H820mm
For use in height restricted areas
Suitable for solid or stud wall installations
Includes concealed cistern 160mm depth
Suitable for Wall Hung Pans with an axial distance of 180mm & 230mm
Front and top operating panel
2 cable operated flush
Cistern insulated against condensation
Galvanised Legs with 0-200mm adjustment with brake system and rotating feet
135mm – 205mm adjustable wall bracket
Noise level <20dba
Max flush 6/3L, Low flush 4.5/3L
Outlet pipe can be rotated up to 80′
Flow pressure 0.1 – 10bar
