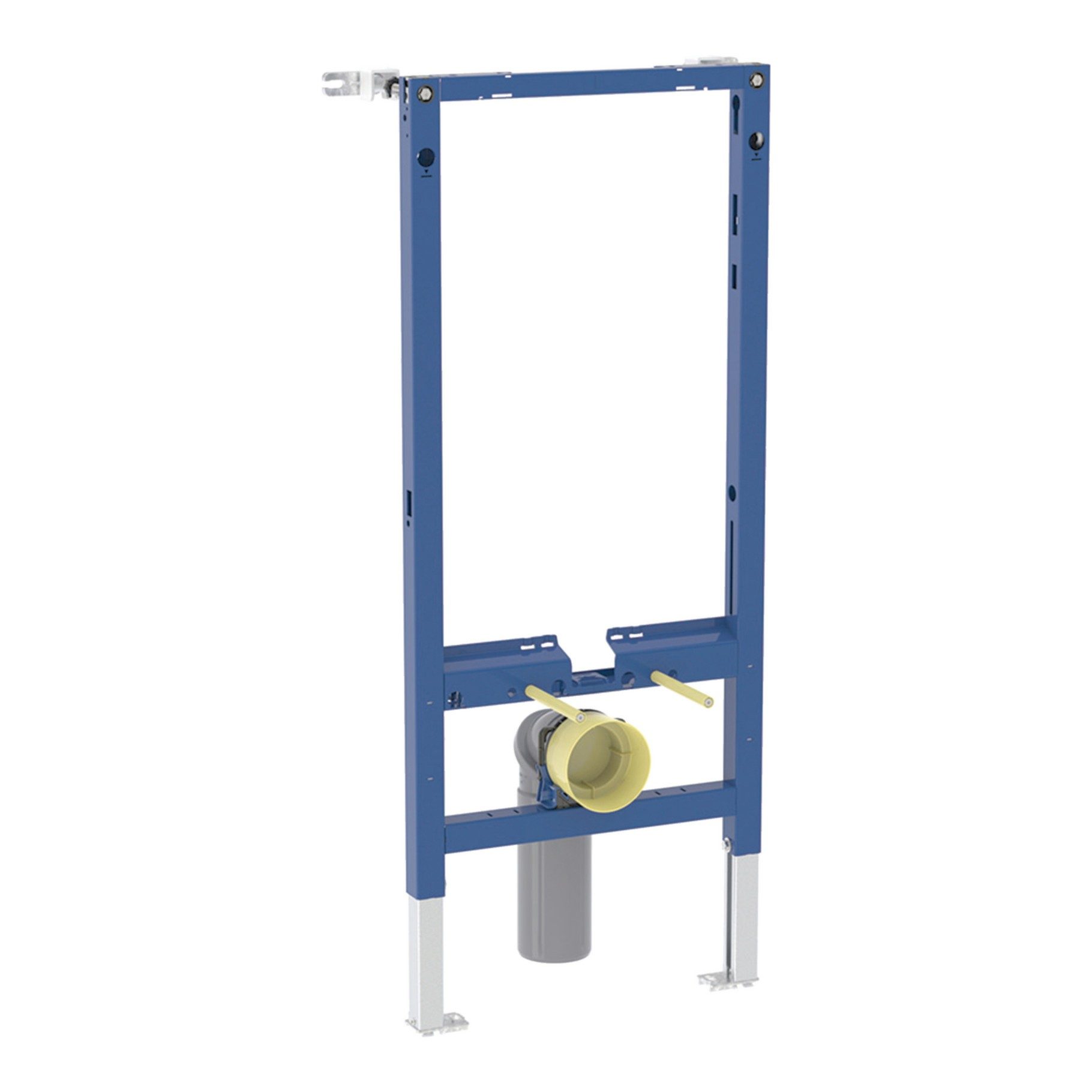

Geberit DuofiX Element For Wall-Hung WC 1120mm Without Cistern

Product Description

This Geberit Duofix Frame for Wall-Hung WC 112cmH without Cistern is a flexible and robust frame ideal for custom concealed cistern installations in modern bathrooms.

Specification

Key Features
Frame height: 112cm
Designed for wall-hung WCs with a projection up to 70cm
Powder-coated steel frame – corrosion-resistant & self-supporting
Quick & tool-free installation with rotatable connection bend (adjustable depth: 45mm)
Flexible mounting for both wood and metal frame walls
Includes wall anchors & WC connection set

Perfect For:
Metal or wooden stud walls
Geberit Duofix system walls
Part- or full-height pre-walls
Room-height partition walls
Floor constructions with 0–25cm build-up

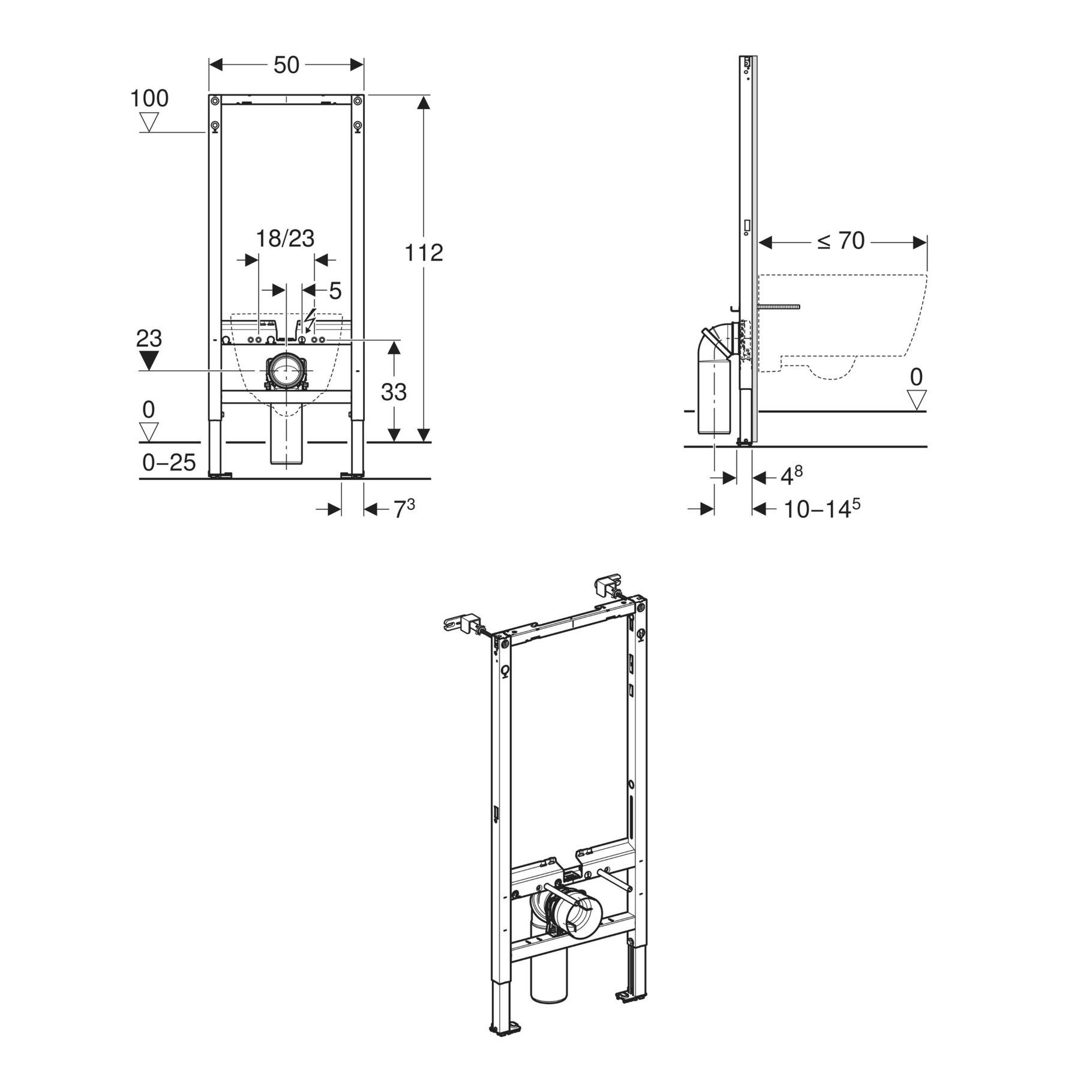

Technical Specifications:
Material: Powder-coated steel frame, galvanised supports
Height: 112cm
Width: 50cm
Depth: 10–14.5cm
Complies with EN 33 standards

What’s Included:
2 × Wall Anchors
WC Connection Set (Ø90mm)
90° PVC Connection Bend (Ø90/100mm)
Fixings & Protection Material

Data Sheet
